OLAP Workshop 3 : Building an Analytic Workspace

In this lesson, we look at how to use the Analytic Workspace Manager 10g (AWM 10g) tool in conjunction with 10g OLAP to build multidimensional database objects. We will use AWM to perform the following tasks:

• Create an analytic workspace
• Define dimensions
• Define cubes
• Load data from source relational tables
• View data

Throughout this post I have tried to add observations and best practices I have picked up while working with various customers across the US and EMEA. As a result I am going to split this posting into possibly three postings:

• Create an analytic workspace and defining dimensions
• Modelling and mapping different types of dimensions
• Define cubes and load data from source relational tables

So what is the difference between AWM and OWB? AWM should be considered an “EL” tool, it does not contain transformation tools (in AWM 11g simple transformations are possible), for building analytic workspaces. .The target audience for AWM is business users and also developers already using another ETL tools that does not provide support for OLAP data modelling.

For this workshop we are going to focus on using AWM. For more information on using OWB to build OLAP data models see the links posted in Workshop 2.

Building Blocks of the Multi-dimensional Model




The first step is design the logical data model, including the dimensions and measures that are needed in the AW. Obviously Warehouse Builder provides the perfect environment for creating a logical data model, and there are some presentations that cover this on the OWB OTN Home.

However, if you prefer a more to use a pure data modelling tool then I would recommend looking at CWD4ALL from one of our partners, IKAN. To quote directly from their website:

"CWD4ALL is a database & OLAP modeling and design tool, fully conformant to the OMG CWM™ specifications. Its advanced modeling and design capabilities provide the means to align your modeling activities with this new worldwide standard. CWD4ALL provides both forward and reverse engineering functionalities. Reverse engineering constructs a graphical model from your existing DB/2, UDB, Oracle and SQL Server 2000/2005 database or schema, which on their part can be forward engineered to an Oracle relational model and the corresponding DDL or Oracle Analytical Workspaces.

Multi-dimensional modelling and OLAP
The multi-dimensional model is integrated with the CWD4ALL data models, which stay on top them and use metadata from the logical model and therefore can be mapped to different implementations of relational models. Thus schema and naming independence for used tables and columns is provided, allowing a high flexibility during deployment of the model. Detailed and compact multi-dimensional diagrams provide an easy way to define dependencies in the multi-dimensional model even going beyond possibilities of traditional Star and Snowflake schemas. The multi-dimensional model provides support for OLAP & Oracle Analytical Workspaces. For relational data warehousing you will be able to deploy definitions of levels, dimensions and hierarchies to the Oracle dictionary, thus building a basis for the query rewrite option of the Oracle database. Moreover it will assist in building materialized view definition and defining bitmap join indexes. For Oracle OLAP data warehouse, CWD4ALL will deploy the multi-dimensional model to Oracle 10g Analytical Workspaces and assist in defining the SQL path to calculations in Oracle Analytical Workspaces through view definitions based on OLAP-TABLE functionality. In addition to designing and maintaining correct database relational model behaviour, CWD4ALL allows the designer to examine and specify actual application behaviour so that space management, undo datasets and the full range of implementation-specific parameters can be modeled and defined appropriately.

For more information on CWD4ALL click here to go to the website.

Obviously AWM can also help you design your logical data model but there is one important difference between AWM and OWB/CWD4ALL. AWM is best described as “design time at run time” which means as you create dimensions, cubes etc using AWM the object is created immediately in the analytic workspace, i.e. there is no deployment phase. Which from a business user perspective makes this an ideal product as it simplifies the whole process.

In this workshop we will create the following model based on the sales history schema (SH)

Dimensions

• Time: Shows how data varies over time
• Product: Shows how data varies by product
• Geography: Shows how data varies by geography
• Channel: Shows how data varies according to each distribution channel

Stored Measures

• Sales
• Costs
• Quantity

Examining the Logical Model:
Dimensions
After you have identified dimensions, you can identify the levels of summarization within each dimension. Analysis requirements reveal that:

• Channel dimension has three levels: Total, Class, and Channel
• Geography dimension has four levels: Total, Region, Subregion, and Country
• Product dimension has four levels: Total, Category, Subcategory, and Product.
• Time dimension has three levels: Year, Quarter, and Month.

Note with OLAP dimensions and additional top level is always added to allow business users to fully analyse. In Excel terms this provides the “All” level, or in relational terms allows the dimension to be pivoted out of the query.

Cubes
Cubes provide a convenient way of collecting similar measures of the same dimensionality. It is not uncommon for many measures to have the same shape, and so by defining their shape (and other shared characteristics) for a cube, you can save time when building your AW. Multidimensional cubes are stored in AWs. A particular AW may contain more than one cube, and each cube may describe a different dimensional shape.

Dimensions defined the edges of a cube. Although there is no limit to the number of edges of a cube, BI tools typically organize the display along three edges: row edge, column edge, and page edge. A single dimension or multiple dimensions can be placed on each edge.

A cube is simply a logical object that helps an administrator to build and maintain an AW. It also aids in the definition of measures with common characteristics, such as sparsity patterns and aggregation rules. Measures in the same cube have the same relationships to other logical objects and can easily be analyzed and displayed together.

In this lesson, we will create our first cube, Sales, containing three measures. These are base measures, which store the facts collected about the business.
Each measure that belongs to a particular cube shares particular characteristics with other measures in the cube, such as the same dimensions. The Sales cube includes:

• Dimensions: Time, Geography, Product, and Channel
• Measures: sales, costs, quantity

The data for these measures, and the dimensions that organize the measures, will be sourced from tables in the SH schema, as discussed in the next slide.

Getting Started
Configuring your database:
This is an area that seems to cause the most problems. This is always surprising to me considering that OLAP 10g is completely integrated into the database engine. The key here is making sure you have the correct patches applied to your database kernel and database instance. You can validate your existing configuration against the OLAP certification matrix, which can be viewed from here:

http://www.oracle.com/technology/products/bi/olap/collateral/olap_certification.html

When applying database patches please note that the majority of patches are composed of two parts. Firstly you need to use the Universal Installer to apply the kernel updates. Secondly your database instance needs to be upgraded via a series of SQL scripts. This is all documented but many people get caught out.

In this case I am using 10.2.0.3 version of the database (Note that OLAP is available only in the Enterprise Edition of the database and is a costed option) with an additional OLAP patched described as the “OLAP A Patch” in Metalink. All this is explained in the certification matrix as stated above.

You can quickly and easily check the status of your schema by connecting to your database instance using SQLPlus (or use SQLDeveloper) and run the following commands:

col comp_name format a25 heading 'Component'
col version format a12 heading 'Version'
col status format a10 heading 'Status'
col modified heading 'Modified'

SELECT comp_name, version, status, modified
FROM dba_registry
WHERE comp_name like '%OLAP%';

Component Version Status Modified
------------------------- ------------ ---------- --------------------
OLAP Analytic Workspace 10.2.0.3.0 VALID 19-NOV-2006 08:13:33
Oracle OLAP API 10.2.0.3.0 VALID 19-NOV-2006 08:13:35
OLAP Catalog 10.2.0.3.0 VALID 19-NOV-2006 08:13:38


Setting up AWM
The first step is to download AWM from the OTN OLAP home page:

http://www.oracle.com/technology/software/htdocs/devlic.html?url=http://download.oracle.com/otn/java/olap/AWM_102030A_Win32.zip

and the associated readme file that explains installation requirements is here:

http://www.oracle.com/technology/products/bi/olap/awm102030A_readme.html

After installing AWM you can run the awm.exe file located in the ..awm/bin directory or click on the desktop icon.






Making a connection to your database instance
The first step is to create a new user to own our analytic workspace. For this example we will create a user called SH_OLAP and this user will need to have a special role assigned to it to allow the user to create and manage analytic workspaces. This role is OLAP_USER. Some people are often tempted to use a different role, OLAP_DBA. This is similar to providing a normal user with the DBA privileges. Do not be tempted to use this role as provides a lot of additional privileges that can in some cases cause lots of problems during use. This role should only be assigned to the user OLAPSYS.

CREATE USER "SH_OLAP" PROFILE "DEFAULT"
IDENTIFIED BY "SH_OLAP" DEFAULT TABLESPACE "SH_OLAP"
TEMPORARY TABLESPACE "SH_OLAP_TEMP"
ACCOUNT UNLOCK;
GRANT "CONNECT" TO "SH_OLAP";
GRANT "OLAP_USER" TO "SH_OLAP";

This user will need SELECT privileges on the source tables that will be used to populate the dimensions and the cubes.

As a best practice I will normally assign my OLAP user to its own tablespace and create a temp tablespace specifically for that user as well. The reasons for this will become evident later when we look at what happens during the loading of data into a dimension and/or a cube. Make sure this new user has sufficient quota on both these tablespaces.

When you start AWM for the first time you will need to define a new connection to your database instance.


This step can cause problems and a number of people have posted questions on the OLAP forum regarding connecting to a database instance. Using a TNSNames alias as the connection string causes the majority of problems. You can only use a TNS alias if you also install the SQL net layer from the database client CD. This is not provided as part of the AWM installation so needs to be added as part of a separate process.

Personally I always a JDBC connection as this does require any additional software to be installed. The syntax for a jdbc connection is :

Hostname:port:sid

An example would be something like this:

klaker-uk.uk.oracle.com:1521:beans

Alternatively you can use localhost or 127.0.0.1 to identify the host:


To now connect to our database instance simply click on “+” sign next to the database name. You will notice from the picture below you can define as many connections within AWM as you need. Once the connection dialog is shown enter the username and password in the dialog box. And then click OK to start the connection process.


Creating an Analytic Workspace
To create an analytic workspace, we need to perform the following steps:

1. Find the schema name under which you want the AW to reside, in this case our user is SH_OLAP. Expand that schema name to display the Analytic Workspaces node.

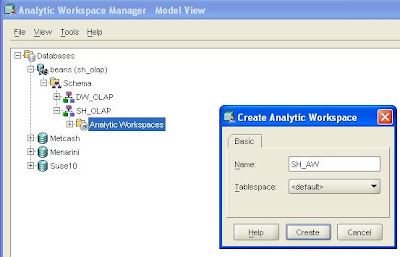

2. Next right-click the “Analytic Workspaces” node. This will show the “Create New Analytic Workspace” dialog box appears.
3. Lastly we can enter a name for our AW which in this case is SH_AW.

Optionally, we can choose a tablespace where this AW is stored. By default, the default tablespace is used for the schema. This is set up by the database administrator (DBA) when the schema is created. In this case the default tablespace is SH_OLAP.

Now we have created the AW, it appears in the navigator under the node where it is created. It is attached in read/write mode, which means that you can make changes to it.

At this point we have two options:

• Manually define our dimensions and cubes
• Load a predefined model from a template

You can create a workspace directly from a template. A template holds the definition of objects. You can use templates to create analytic workspaces, cubes, and dimensions. In this case we are going to manually define the objects within our AW.



Note: Once we have created the AW, a table named AW$SH_OLAP is created at the database level. (The format for the naming convention is AW$aw_name, WHERE aw_name is the name that you have chosen for your AW.) This table stores all of the multidimensional objects in your AW.

Does Oracle OLAP Support Multiple Languages?
Yes, an AW can support multiple languages. This enables the users of your OLAP applications and tools to view the metadata and descriptive attributes in their native languages. The number and choice of languages is restricted only by the database character set and your ability to provide translated text.

To add support for multiple languages, perform the following steps:

• In the Model View navigation tree, expand the folder for the AW.
• Click the Languages folder, and select the languages for the AW on
• the General tabbed page.
• As you create your objects, such as dimensions, levels, hierarchies, attributes, cubes, measures, calculated measures, and measure folders, open the Translations tabbed page of the property sheet. Enter the object labels and descriptions in each language.
• When you map the dimensions, map the attributes to columns for each language.

Note: In this class, a single language is used, which is American, although the image shown below has multiple languages selected.


Creating Dimensions
Dimensions are lists of unique values that identify and categorize data. They form the edges of measures (facts). Dimensions have structure that helps in the navigation of data and the definition of calculations. This structure includes levels, hierarchies, and attributes in the logical model. You define these supporting objects, in addition to the dimension itself, in order to have a fully functional dimension.

Dimension Type
AWM provides two types of dimensions:

• User Dimensions
• Time Dimensions

Most dimensions that we will create during this workshop are of the type default “User Dimension”. In the example shown below, a Time dimension is created. If you explicitly set the dimension type to “Time Dimension,” AWM automatically prepares some additional time attributes. When populated, these attributes facilitate time series calculations on the measures that share this dimension. It is recommended that all your time dimensions be created with this setting.

Again this seems to regularly come up on the forums – you will only see the time series calculations in the Calculation Builder (See the workshop on building cubes). These calculations require two additional time based attributes to be populated – Timespan and End Date. Most customers do not have these attributes in their existing relational schemas so they need to be added. Fortunately OWB will generate an OLAP compliant time dimension. If you are not using OWB then you will need to find a different way of creating these additional attributes (there was a posting on the OLAP forum where someone actually posted all the code required to create an OLAP compliant time dimension but unfortunately I cannot find the thread now, may be someone else can locate it).


Other Tabs
The Translations tabbed page enables you to provide labels in languages that your AW uses.



The “Implementation Details” tabbed page enables you to identify certain dimension characteristics. By default I always recommend using the Surrogate Key option as this ensures unique members are created across all the levels within a dimension.



For people used to relational data models this can be quite confusing. What happens during when loading data into a dimension is all the source columns are collapsed into a single column within the AW. Therefore, across all the source columns the keys must be unique. Let’s consider an example with time:

YEAR_ID YEAR_DESC QUARTER_ID QUARTER_DESC MONTH_ID MONTH_DESC
31-12-2007 Yr 2007 31-12-2007 Q4 2007 31-12-2007 December 2007

Using this as a source table to populate our time dimension we have three keys (YEAR_ID, QUARTER_ID, MONTH_ID) that will be collapsed into a single column. It is obvious in this case the same key is used to identify three different levels within our dimension. In this case the last key that is read will win and the end result will be a single dimension member will be added to our time dimension and that member will be either a month or quarter or year (most likely a year). If we switch to using surrogate keys then three members will be added because the data load program will concatenate the level name with the source key to ensure uniqueness:

• YEAR_31-12-2007
• QUARTER_31-12-2007
• MONTH_31-12-12007

Simple really! But does this have any impact on the AW? In some cases ‘Yes’. I have found that it is prudent to keep your level names as short as possible. When building levels I normally assign simple level names such as L1, L2, L3 etc etc. This keeps the surrogate keys small and compact. What I found working with one customer was that the OLAP engine had certain issues when using very large (75 characters) text strings as the source key and by adding the level to start of each key as well caused data loading problems. Probably an edge case but since then I have always preferred using simple level ids.

Creating Levels
For business analysis, data is typically summarized at various levels. For example, our database schema, SH, contains daily snapshots from a transactional schema (OE, HR, etc). Days are thus the base level. However, in this case the decision has been take to summarize this data up to the monthly level and then add quarterly, and yearly levels.

Levels have parent-child or one-to-many relationships, which form a hierarchy. For example, each month summarizes days, each quarter summarizes months, and each year summarizes quarters. This hierarchical structure enables analysts to detect trends at the higher levels and then drill down to the lower levels to identify factors that contributed to a trend.

To create a level for any dimension, right-click the Level icon beneath the dimension, and then select Create Level. Fill in the name, labels, and a description. The labels can be used in reports; the description enables you to comment on the object. Repeat the process for each level in the dimension.



Creating Hierarchies
Most dimensions will have at least one hierarchy, but Oracle OLAP does also support completely flat dimensions where no hierarchy exists. Although this is rare it does occur in some cases, but it is always wise to have an “All Members” level for these types of dimensions as this will allow business users to pivot these types of dimensions out of their query by selecting that top level. Otherwise their queries will always be pinned to a single dimension member within the page dimension.

A hierarchy defines a set of parentage relationships between all or some of a dimension's members:

• Used for rollups of data.
• Used for end-user navigation; e.g., drill-down.

While multiple hierarchies are supported each member can have only one parent within each hierarchy.


Name the hierarchy. We can provide descriptive labels that can be used in reports. Select the “Set as Default Hierarchy” option if this is the only hierarchy for the dimension or if it is the hierarchy that will be used most frequently for analysis. In this case we can choose the Level Based Hierarchy option.

Finally we can select the levels for our hierarchy. The levels are organized from the highest level of aggregation to the lowest.



Creating Attributes Attributes contain descriptive information about dimension members that are used for data selection and identification. They are used for labelling cross-tabular and graphical data displays, selecting data, organizing dimension members, and so on.
AWM 10g defines basic attributes automatically. For each dimension, it creates long and short description attributes. For a Time dimension, it also creates time-span and end-date attributes.

We can easily add additional attributes, such as month number or quarter number. These additional attributes further enrich the AW. The Implementation Details tabbed page identifies the data type for the attribute. This data type should match the source data.

For most attributes it is useful to consider creating an Index if the attribute has a reasonably low cardinality. This will improve query performance if the attribute is used as a filter within a business query. What happens under the covers is an additional dimension is created containing the members of the attribute and a relation is created to map the attribute dimension members to the base dimension members. Oracle OLAP is very efficient at using relations during queries as a way of filtering members.




In the next posting in this series of workshops we will review how to map dimensions to source data and how to manage different types of dimensions (value based, skip level, ragged, star source table and snowflake source tables).

OLAP Workshop 2 : Understanding OLAP Technology

In the last posting I hopefully explained some of the basic concepts behind OLAP. In this posting I want to explore how those basic concepts are exposed by the various OLAP aware ETL and reporting tools provided by Oracle and other BI vendors.

Architecture of Oracle OLAP




For a long time now Oracle has been unique in the marketplace. With Oracle Database 9i, 10g and 11g, all data (relational and multidimensional) is stored in one Oracle database. Only Oracle OLAP provides native multidimensional data types within the database.

A high-level architectural view of the Oracle OLAP option contains three parts:

• Oracle Database 10g OLAP option, which comprises:
• Multidimensional data types
• OLAP calculation engine
• Open-access interfaces
• End-user tools, which provide access to OLAP data for a wide spectrum of analytic needs
• Administrative tools used to create and manage multidimensional data types. Oracle provides two administrative tools that can be used to create multidimensional data types in Oracle Database 10g:
• Oracle Warehouse Builder
• Analytic Workspace Manager

The following sections examine these three layers in more detail.

Components of Oracle OLAP With the Oracle OLAP option, you get two powerful arenas of functionality:

• OLAP API and the analytic workspace (AW).
• OLAP API Functionality

Analytic Workspace
The Analytic Workspace is the container for the multidimensional data types and leverages the multidimensional calculation engine of the OLAP Option. The AW also provides a standard SQL interface to the multi-dimensional model. This provides an industry standard access layer that can be used by any BI reporting tool that generates SQL commands, from SQL Developer, to Application Express on to more sophisticated tools such as BI EE.

The AW also provides an XML API for administration, and a programming language (OLAP DML).

Multidimensional Data Store
The OLAP option provides true array-based multidimensional data types within the Oracle database. These multidimensional data types are contained in special tables in Oracle called analytic workspaces. Some data types are used to store data, whereas others are calculated instantaneously using the multidimensional engine.

Multidimensional Calculation Engine
The OLAP Option’s multidimensional engine includes an impressive library of multidimensional-aware calculation functions and support for planning functionalities such as statistical forecasts, models, allocations, projections, and “what-if” scenarios, in the context of Analytic Workspaces. The multidimensional engine interacts with the multidimensional data types in the analytic workspace in the Oracle database.

The Oracle OLAP option provides a specialized Java API that developers can use to exploit the full power of the Oracle OLAP option by using advanced dimensionally aware tools and applications. This API is used by Oracle Business Intelligence tools such as OracleBI Beans, OracleBI Discoverer, OracleBI Spreadsheet Add-In, and Oracle Reports OLAP Plug-in to provide a true multi-dimensional query and calculation environment.

OLAP DML
The OLAP DML is an extremely powerful and analytically rich feature of the AW. It is a dimensionally aware, high-level procedural language that runs in the database and exploits the multidimensional engine and multidimensional data types.

With the Oracle OLAP option developers can exploit the OLAP DML to add more sophisticated calculations and analysis to AWs and to extend the functionality of applications that access them. The OLAP DML is briefly introduced in the lesson titled “Previewing Advanced Oracle OLAP Features.”

AW API
The AW API is a Java API that is used to define and physically build multidimensional analytic workspaces inside Oracle Database 10g. The AW API is used by administrative tools such as Analytic Workspace Manager and may be used by developers, if required, to enhance and extend analytic workspaces as necessary for a specific application.

Query Access to Oracle OLAP
Different users with different end-user tool requirements can all access the same data, taking advantage of the same calculations, and benefit from the same security, scalability, performance, and availability of the Oracle database.


OLAP API
The OLAP API is designed to work with both multidimensional data types and relational data types in the Oracle database.

• The API enables you to directly access multidimensional data types in the AW.
• To access relational data types, you can register a relational physical dimensional model (such as a star or snowflake schema) to the Oracle Database OLAP Catalog.

Therefore, tools that use the OLAP API can be deployed against multidimensional analytic workspaces or suitable relational schemas that are registered to the Oracle OLAP option’s metadata layer.

Many Oracle source business intelligence tools take full advantage of the multidimensional query data model provided by the Oracle OLAP option through the OLAP API. These include OracleBI Spreadsheet Add-In, OracleBI Discoverer, OracleBI Beans, and OracleBI Reports.

SQL Interface
Unlike other multidimensional OLAP server products, Oracle OLAP provides not only a specialized API but also industry-standard SQL to access multidimensional data types.

You can use a simple SQL query with relationally oriented tools and applications to gain access to the multidimensional data types in the Oracle database. As a result, your SQL-based applications (such as report generators and ad hoc query tools) can access multidimensional data and calculations managed by the Oracle OLAP option.
SQL and PL/SQL are also used to manage and maintain multidimensional analytic workspaces and to move data between relational and multidimensional data types within the Oracle database.

For example, Oracle Application Express is an easy-to-use tool that is supplied with Oracle Database 10g for Web access to the Oracle database. Oracle Application Express is an example of a SQL-based application with no built-in OLAP knowledge that can nevertheless leverage the power of Oracle OLAP.

Many third-party tools from independent software vendors and Oracle partners, such as Arcplan, Business Objects, Cognos, and a large and growing number of business intelligence vendors throughout the world, access OLAP data through the Oracle OLAP option. Some of these vendors’ tools leverage the OLAP API, whereas others exploit the SQL query interface.


Dimensionally Aware Products

Oracle BI Spreadsheet Addin
OracleBI Spreadsheet Add-In makes it easy to access OLAP data through the familiar spreadsheet environment of Microsoft Excel. After installation of OracleBI Spreadsheet Add-In, “OracleBI” appears as a new menu item in Excel. By using OracleBI Spreadsheet Add-In, you can establish a secure connection to the OLAP data source and use Excel as the front-end access tool to the data in the database.

Here are some of the features of OracleBI Spreadsheet Add-In:

• It combines the flexibility and familiarity of Excel and the power, scalability, and security of the Oracle OLAP option.
• OracleBI Query and Calculation Builders: After the connection is established, you can use the wizard-driven interface to drill, pivot, page through large cubes, and create reports.
• Access to Excel features
• Powerful data-formatting features of Excel,
• Combine Oracle OLAP data with other Excel data
• Write Excel macros that leverage all your data.
• Create formulas and graphs in Excel,


Excel users can quickly and easily combine the powerful analytic capabilities of Oracle OLAP with standard Excel functions that you know and use each day.



When using Excel OLAP calculations are performed directly in the database: The benefit of using OracleBI Spreadsheet Add-In is that you no longer need to download massive amounts of data to your spreadsheet. Oracle Database 10g OLAP performs all the OLAP calculations quickly and efficiently in the database. The calculations and business logic are defined only once in the database and then shared across the user community.

For more information go to the Spreadsheet Addin home page on OTN:

Spreadsheet Addin OTN Home Page
http://www.oracle.com/technology/products/bi/spreadsheet_addin/index.html

OracleBI Spreadsheet Add-In Feature Overview
http://www.oracle.com/technology/products/bi/spreadsheet_addin/htdocs/feature_overview/oraclebi_spreadsheet_addin_fov.htm

Introduction to OracleBI Spreadsheet Add-In
http://www.oracle.com/technology/products/bi/spreadsheet_addin/viewlets/olapsa_welcome_viewlet_swf.html


OracleBI Discoverer
This is another Oracle Business Intelligence tool that can directly access Oracle OLAP data. Discoverer Plus OLAP is an ad hoc query, reporting, analysis, and Web-publishing tool. It enables you to:

• Perform OLAP query, reporting, and analysis on both multidimensional data models (analytic workspaces) and relational OLAP data models (star or snowflake schemas).
• Access and analyze multidimensional data from your company’s database without having to understand complex database concepts. The wizards and menus of Discoverer Plus OLAP guide you through the steps to retrieve and analyze multidimensional data.

Because Discoverer Plus OLAP understands the dimensional data model, you formulate your queries in the language of business—you use dimensions, hierarchies, levels, and measures through a simple interface. You can also exploit the rich features of OLAP through dimensionally aware query and calculation builders, thereby simplifying the tasks of defining queries and calculations. Worksheets that are authored in Discoverer Plus OLAP are published to the Web, where Discoverer Viewer and Oracle Portal users can access them.


For more information go to the Discoverer home page on OTN:

Discoverer OTN Home Page
http://www.oracle.com/technology/products/discoverer/index.html

Creating OLAP worksheets
http://www.oracle.com/technology/products/discoverer/files/viewlets/1012_plus_olap_creating.html

Modifying OLAP worksheet properties
http://www.oracle.com/technology/products/discoverer/files/viewlets/1012_Plus_OLAP_Modifying.html

OracleBI Beans
OracleBI Beans is used by business intelligence and OLAP developers. OracleBI Beans is used for developing applications such as Oracle Enterprise Planning and Budgeting and tools such as OracleBI Discoverer and OracleBI Spreadsheet Add-In. BI Beans is also available to third-party software developers to accelerate development of custom OLAP applications.



BI Beans is a set of standards-based Java beans that is integrated into Oracle JDeveloper. It provides analysis-aware application building blocks designed for the Oracle OLAP option of the Oracle database. Using BI Beans, you can create customized business intelligence applications that take advantage of the robust analytic capabilities of Oracle OLAP.

Applications can include advanced features such as interactive user interfaces, drill-to-detail reports, forecasting, and what-if analysis. BI Beans includes Java beans for acquiring data from the Oracle database, presenting data in a variety of crosstab and graph formats, and saving report definitions, custom measures, and data selections.
Using BI Beans, you can develop business intelligence applications from Oracle JDeveloper, or any Java application development environment, and deploy them through any application server as a thin or thick client.

For more information go to the BI Beans home page on OTN:

BI Beans OTN Home Page
http://www.oracle.com/technology/products/bib/index.html

Oracle BI Beans Feature Overview
http://www.oracle.com/technology/products/bib/1012/htdocs/feature_overview/BI_Beans_Feat_Oview.htm

Developing a Dashboard Application with Oracle BI Beans
http://www.oracle.com/technology/products/bib/1012/viewlets/MS Developing Executive Insight.html


SQL Access Products
Oracle Business Intelligence EE
Oracle Business Intelligence Suite Enterprise Edition 10g, Release 3 (BI EE 10g) delivers significant new product enhancements to further enable enterprise-wide BI, including integration with Oracle OLAP. In this release, Oracle's native multidimensional data model -- the analytic workspace (AW) -- is made accessible to BI EE 10g by creating the required metadata in Oracle BI Administration Tool. The AW data is exposed to the BI EE 10g product stack, and the OLAP engine is leveraged for analysis of that data.

Creating access to Oracle OLAP data is a simple 3-step process. Each these steps are covered in detail as part of a training document provided as an Oracle by Example. This explains how to: prepare an AW for access by BI EE 10g; create the required metadata using Oracle BI Administration Tool; and create analytic reports of AW data using Oracle BI Answers



For more information go to the BI EE home page on OTN:

BI EE OTN Home Page
http://www.oracle.com/technology/products/bi/enterprise-edition.html

Ad-hoc query and reporting
http://www.oracle.com/technology/products/bi/enterprise-edition-platform-components.html

Oracle By Example:
These lessons are designed for completion in the order that is shown below. Each subsequent lesson depends on the completion of the previous lesson. Click on any of the links below to begin.

Lesson 1: Preparing an Analytic Workspace for Access by Oracle BI EE 10g
http://www.oracle.com/technology/obe/obe_bi/bi_ee_1013/olap/PrepareAW.htm

Lesson 2: Creating BI EE 10g Metadata for the Analytic Workspace
http://www.oracle.com/technology/obe/obe_bi/bi_ee_1013/olap/CreateMetadata.htm

Lesson 3: Querying OLAP Data Using Oracle BI Answers
http://www.oracle.com/technology/obe/obe_bi/bi_ee_1013/olap/QueryData.htm



Oracle Application Express
The Oracle OLAP option provides a SQL interface to access multidimensional data types, thus enabling any SQL-aware tool to access data in the analytic workspace.
Oracle Application Express is an easy-to-use report builder that is provided with Oracle Database 10g to simplify the creation of database-centric interactive Web pages.

Thus, with the Oracle OLAP option, you can use Oracle Application Express to provide Web-based access to key performance indicators such as profitability, sales, units shipped, trends, and period-to-period comparisons and forecasts.
It provides support for some interactive reporting (for example, you can use hypertext links to call more SQL queries), but it is not a fully interactive analysis system like OracleBI Discoverer or like other specialized business intelligence tools.

The Web report in the slide is generated with the following SQL code:

SELECT region_desc, sales, units, cost, profit,
ROUND(pct_margin ,3), fcast_sales
FROM mysalesaw_view
WHERE time_desc = TO_CHAR(ADD_MONTHS(SYSDATE,-3), 'Mon-YY')
AND product_level = ‘ALL'
AND channel_level = ‘ALL'
AND customer_level= 'REGION'
ORDER BY sales DESC;

Because the multidimensional data model presents data to the query layer as if it were precalculated, prejoined, and preaggregated, your query does not need to perform any calculations, joins, or aggregations. SQL code is thus very simple to write and fully leverages the power of the AW. The multidimensional engine returns the requested data from the AW extremely efficiently and quickly, even if the AW is calculating much of the data instantaneously.

For more information go to the Application Express home page on OTN:

Application Express OTN Home Page
http://www.oracle.com/technology/products/database/application_express/index.html

What is Oracle APEX?
http://www.oracle.com/technology/products/database/application_express/html/what_is_apex.html

3.0 New Features
http://www.oracle.com/technology/products/database/application_express/html/3.0_new_features.html


Tools to Build an Analytic Workspace
Two tools are available for IT and power users to easily build analytic workspaces (AWs) and load them with data (for analysis with tools such as OracleBI Beans, OracleBI Discoverer, and OracleBI Spreadsheet Add-In):



Shared API for AW Creation Both OWB and AWM use the AW XML API to build and maintain AWs. Therefore, an AW model that is created by AWM can be incorporated back into the OWB repository to provide version control, lineage, and impact analysis if changes to the original source systems are required.

Note: Both OWB and AWM generate scripts that may be called and scheduled from PL/SQL scripts or other scheduling processing tools, if required.

Analytic Workspace Manager (AWM) AWM is a tool that makes it easy to build and maintain AWs from a suitable (clean) data source. AWM is used on source data that has been cleaned by the ETL process.

The clean data may have been created by Oracle Warehouse Builder or by another ETL process; your IT department would have a preferred method of preparing data.
AWM is focused on the simple task of building AWs. It has an intuitive wizard-based user interface and is therefore suitable for both IT and power users.

AWM supports the complete process of creating an AW from beginning to end in a single, dimensionally aware design environment.

The creation process includes three easy steps:

1. Design the dimensional model.
2. Map the dimensional object to the source data.
3. Load the data into the AW.

After you have performed these steps, the AW is immediately available for your tools to query.

For more information go to the OLAP home page on OTN:

OLAP OTN Home Page
http://www.oracle.com/technology/products/bi/olap/olap.html

Analytic Workspace Manager 10.2.0.3.0A
http://www.oracle.com/technology/software/htdocs/devlic.html?url=http://download.oracle.com/otn/java/olap/AWM_102030A_Win32.zip

Analytic Workspace Manager 10g
http://www.oracle.com/technology/products/bi/olap/1451_AWM10g.pdf

Improve SQL Based Business Intelligence Tools with Oracle OLAP 11g
http://www.oracle.com/technology/products/bi/olap/Oracle_OLAP_11g_TWP.pdf

Leveraging Business Intelligence Tools
http://www.oracle.com/technology/products/bi/olap/40261_leveragingtools.pdf

Analytic Workspace Manager 10.2.0.3.0
http://www.oracle.com/technology/products/bi/olap/viewlet/AWM102_viewlet_swf.html


OracleBI Warehouse Builder 10g R2 (OWB)
OWB is an advanced management and ETL tool, used by developers and database administrators to build and manage data warehouses in the Oracle database. OWB manages the entire process of collecting and cleaning data.

• Collecting data: OWB collects data from the various operational systems that feed the data warehouse.
• Cleaning data: OWB performs various required transformations and data-cleansing activities (for example, dealing with inconsistencies between different source systems, matching and merging data from them, and processing missing or erroneous data).

The result is a set of clean tables in the Oracle database.

• OWB includes advanced data-profiling features.
• OWB enables data warehouse developers to optionally populate relational star or snowflake schemas or multidimensional AWs for access by the Oracle OLAP option.
• OWB is, therefore, a professional IT tool.

Warehouse Builder is free to database customers and this free functionality includes deploying OLAP schemas. Some Warehouse Builder features are costed options and these include:

• Enterprise ETL
• Data Quality
• CRM/ERP Connectors

For more information go to the Warehouse Builder home page on OTN:

OTN Home Page
http://www.oracle.com/technology/products/warehouse/index.html

Oracle Warehouse Builder 10gR2 and Oracle OLAP
http://www.oracle.com/technology/products/warehouse/pdf/OWB10gR2 and Oracle OLAP.pdf

Benefits of a Multi-dimensional Model
http://www.oracle.com/technology/products/warehouse/pdf/Benefits of a multi-dimensional model.pdf

In the next workshop we will start to look at the process of building a new analytic workspace using Analytic Workspace Manager 10g (AWM) to perform the following tasks:

• Create an analytic workspace
• Define dimensions
• Define cubes
• Load data from source relational tables
• View data

OLAP Workshop 1 : Basic OLAP Concepts

This is the start of a series of postings that will aim to provide on understanding basic OLAP principles and, most importantly, how to use and get the the most from Oracle's world class OLAP option. This series of workshops will cover a lot of topics, including:

• Basic OLAP concepts
• Understanding the technology behind Oracle OLAP
• Building an Analytic Workspace
• Introduction to dimensions and cubes

• Advanced dimension and cube techniques

• How to use Custom Formulas
• SQL Access to Cubes
• Managing Oracle OLAP


A lot fo the content has been generated by our own consultants and from questions posted on the OTN OLAP forum. Hopefully you will find this series useful.

Let’s start with the most obvious question

What Is OLAP?
Online analytical processing (OLAP) is in my opinion a highly abused term that has lost much of its original meaning. In its original guise, dating from the early 1990’s, the term was used to describe a class of computer systems that were designed and optimized for analysis. This is still true of Oracle OLAP but not for many of the other proprietary solutions currently available in the marketplace.

From my perspective OLAP is about working with data in business terms without having to understand the underlying storage mechanism and having the ability to intelligently and transparently support the many different types of business rules that always exist within an organisation. For example, a very simple and obvious example is Stock. Most query tools do not understand how to correctly analyse stock over time, it is left to the user to select the correct aggregation method.

By using this term, it is possible to differentiate the more analytical requirements of the business analyst and senior management community from the requirements of the more general basic requirements that are easily and quickly answerd by most directly query a transaction processing (OLTP) system. OLAP has now evolved into a more generic environment that is centred around use of the term “business intelligence”. Here the emphasis is more on “online” or active access as well as being far more “analytical” in terms of the reports that are generated.

What do these terms, online and analytical, mean?

Online: Although most OLAP tools and applications enable development of reports that can be saved and printed when not connected to live data, OLAP emphasizes live access to data rather than static reporting. Analytic queries are submitted against the database in real time, and the results are returned in real time.

Analytical processing: This is the key concept with OLAP. End users can:

• Easily navigate multidimensional data to perform unpredictable ad hoc queries and to display the results in a variety of interesting layouts
• Transparently manage business rules across dimensions and cubes
• Drill through levels of detail to uncover significant aspects of data
• Rapidly and efficiently obtain the results of sophisticated data calculation and selection across multiple dimensions of data

A standard transactional report or query might ask, “When did order 84305 ship?” This query reflects the basic mechanics of doing business. It involves simple data selection and little or no calculation processing. It can be answered directly from the transactional system, probably without impacting other operations. Every organisation needs this basic level of information.

In contrast, OLAP systems are typically deployed to extend and enhance an organization’s ability to answer a much broader range of business questions about the data they are collecting in their transactional systems:

• How do sales for our top 10 most profitable products across Europe for this quarter compare with sales a year ago?
• What are the differences in the product-sales mix between the regions, relative to the global sales mix?
• What are our forecast units, unit price per service, unit cost per product, sales, cost trends, and profit for the next 12 months?
• In what ways does the mix vary by salesperson, and what is the relative performance of our salespeople?
• What are the products making up 40% of our profit for each region over time?

These questions are more analytical and complex, and the answer to one question often leads immediately to another question as the user follows a train of thought in researching a business problem or opportunity.

OLAP is designed to make it easy for end users to ask these types of analytical questions without requiring:

• Assistance from the IT department
• Programming skills
• Technical knowledge about the organization of the database

The results of queries also need to be rapid so that the analyst’s train of thought is not interrupted and the value of the analysis is not diminished.




A typical multidimensional business query, would be something like the following:

For each region of the world, what was the percentage change in revenue for our top 20% products, over a rolling three-month period this year compared to the same period last year?

This simple business question describes both the data that the user wants to examine and the structural form of that data. Business users typically want to answer questions that include terms such as what, where, who, and when. For example, you find the following essential questions embedded in the sample question:

• What products are selling best? (“…top 20%…”)
• Where are they selling? (“…each region of the world…”)
• When have they performed the best? (“…percentage change in revenue…”)

If you examine the query in detail it appears to be translate into a very complex query. When I have discussed this type of query during presentations at conferences and with customers you can always spot the DBAs because they immediately try to translate this question into a SQL statement. Of course it is possible to create a SQL query to answer this question. But lets start by breaking this query down and examining it in more detail:

• There are two calculations (percentage change in revenue and rolling three-month total).
• There is a ranking element (the top 20% of products).
• There are aggregations (region level of the geography dimension).
• There are multidimensional selections (specific products, specific time periods, and specific regions).
• The result of the query is a multidimensional view of the data (perhaps as a tabular display on the screen, perhaps as a graph, or both).

Now I think many people would agree this does in fact look like a complex query. To try and frame this within a traditional query and reporting tool would require considerable skill. And don’t forget this is the starting point for the analysis not the final result. The data returned by this query will drive other even more interesting and complex queries.

But the complexity of this query is a technical issue rather than a business issue.
Therefore, a key goal of OLAP technology is to make it very easy for end users to ask such questions about their data without placing a burden on the IT department.


How Does OLAP Make This Easy?
Business users think dimensionally. By design, OLAP technology stores, processes, and presents data in a dimensional way. The data model of OLAP systems reflects the users’ picture of their business data, making it easy to formulate queries in business terms.

OLAP systems are optimised for fast retrieval of data for dimensional analysis.
We will now examine the multidimensional logical model, which serves as the basis for OLAP systems.


The key Objects within the OLAP Model
Most OLAP data models are built around two key concepts: measures and dimensions.

Measures
Measures represent factual data; they are sometimes called “facts.” Typical examples of measures are sales, cost, profit, and margin. Measures are organized by one or more dimensions. Many people visualize measures as being a simple cube type shape, in which the edges of the shape are the dimensions and the contents of the shape are the measure values. The image below shows a generic simple three-dimensional measure



Of course measures are not restricted to just three-dimensional definitions. A measure can have as many or as few dimensions as required to accurately manage the data associated with the measure. In additional Oracle’s OLAP option allows you to design and manage multiple cubes each with different dimensionality. In addition Oracle OLAP supports a number of different data types for measure such as: numeric (Oracle SQL data type), decimal, integer, text, date and boolean.

Measures can be divided into two categories:

• Stored Measures
• Calculated (or derived) Measures

Stored measures are loaded, aggregated and stored directly within the database. Alternatively, they can be derived from the results of calculations that are stored. For example a forecast could be derived from another stored measure such as revenue and the results of the forecast calculation stored in the database.


Calculated measures are measures whose values are calculated dynamically at query time. Only the calculation rule(s) is stored in the database. Common calculations include measures such as ratios, differences, moving totals, and averages. Calculations do not require disk storage space, and they do not extend the processing time required for data maintenance.

Note: Oracle OLAP has a library of several hundred multidimensional calculation functions that can be used in calculated measures. It is even possible for expert users of Oracle OLAP to define their own functions to perform virtually any calculation.


From a business user perspective both measures appear and are used in exactly the same way and have equally as fast query access. All measures are equivalent as far as the end-user interface is concerned. However, it can be useful to at least provide them with the access to the definition of a calculated measure via a tooltip for example, just to avoid confusion.

Below is an example of a typical report contained both stored and calculated measures. The two calculated columns are “Profit” and “Margin”. Because both types of measures are treated the same, business users can use them in queries, conditions, to drive colour coding, exception reporting etc.



So what is the difference between a cube and a measure? If you have used Analytic Workspace Manager you will be familiar with the concept of a cube. This is a high level container, which is invisible to business users querying the OLAP data, for grouping together measures that share the same dimensionality. Cubes do make your life much easier in terms of being able to manage a whole group of measures collectively, store them all to an XML template, load data into a group of measures via single reference and so on.


Dimensions
Dimensions identify and categorize the data within your measures by forming the edges of the measures. Examples of dimensions include product, geography, time, and distribution channel.

Dimensions have three key components:

• Hierarchies
• Levels
• Attributes

With the Oracle OLAP data model, dimensions are stored once and are used repeatedly. This allows dimensions, and their members, to be shared across measures. While dimensions form the edge of a measure, the members point to individual cells inside the multi-dimensional measure, as can be seen above.

In the example below, there is just one Time dimension even though it appears three times. The three measures in the picture have different shapes, or dimensionality. Sales and Units are both dimensioned by the Customer, Product, and Time. Price is only dimensioned by Product and Time; it does not use the Customer dimension because the price does not vary by customer.

Hierarchies
Dimension hierarchies are optional but are common in OLAP systems. A hierarchy is a logical structure that groups like members of a dimension together for the purpose of analysis. For example:

• A Time dimension might have a hierarchy that describes how months are grouped together to represent a quarter and how quarters are grouped together to represent a full year.
• An Organization dimension might have a hierarchy that makes it easy for you to identify the direct reports of a specific manager.

Each dimension can have multiple hierarchies if required. For example, the time dimension can have a hierarchy that represents the Julian calendar and another hierarchy that represents a fiscal calendar.





A dimension’s structure is organized hierarchically based on parent-child relationships. These relationships enable:

• Navigation between levels: Hierarchies on dimensions enable drilling down to lower levels or navigating (rolling up) to higher levels. Drilling down on the Time dimension member “2005” will likely navigate you to the quarters Q1 2005 through Q4 2005. In a calendar year hierarchy, drilling down on Q1 2005 would navigate you to the months January 05 through March 05. These kinds of relationships make it easy for users to navigate large volumes of multidimensional data
• Aggregation from child values to parent values: The parent represents the aggregation of its children. Data values at lower levels aggregate into data values at higher levels. Dimensions are structured hierarchically so that data at different levels of aggregation can be manipulated together efficiently for analysis and display. You learn about the aggregation capabilities of Oracle OLAP in the lesson titled “Applying Advanced Dimensional Design and Cube Processing Techniques.”
• Allocation from parent values to child values: The reverse of aggregation is allocation and is heavily used by planning, budgeting, and similar applications. Here, the role of the hierarchy is to identify the children and descendants of particular dimension members for “top-down” allocation of budgets (among other uses)
• Grouping of members for calculations: Share and index calculations take advantage of hierarchical relationships (for example, the percentage of total profit contributed by each product, or the percentage share of product revenue for a certain category, or costs as a percentage of the geographical region for a retail location)

In this example, you can do the following in the Product hierarchy:

• Navigate up through each level in the hierarchy from the lowest level to the highest level
• Navigate down the hierarchy from the highest level to the lowest level
• Aggregate data from the lowest level (individual products) up through the hierarchy to the highest level (total product)

Levels
Each level represents a position in the hierarchy. The level above the base level contains aggregate values for the levels below it. The members at different levels have a one-to-many parent-child relationship. A hierarchy typically contains several levels, and a single level can be included in more than one hierarchy.

If data for the Sales measure is stored at the Product level, then the higher levels of the product dimension enable the sales data to be aggregated correctly into Subcategory, Category, and All Products levels.

If there are multiple hierarchies built over a dimension, it may be that a level would appear in more than one hierarchy or may exist in only one hierarchy.

Types of Hierarchies
Within a multi-dimensional model there are two basic types of hierarchies:

• Level Based
• Value Based


Most of the hierarchies are level based, including the Product dimension hierarchy shown in the previous slide and the Time dimension hierarchy shown in this slide. In the time hierarchy example, there are Day, Month, Quarter, and Year levels in the hierarchy.

Sales forces also generally have a level-based structure, as in the following example:
Representative > Area > Region > Country > Continent > World

Other dimensions may have hierarchies that are not strictly level based. For example,
there is clearly a hierarchy in an organization chart, but all the direct reports of the President may not be at the same level. In the example, the two VPs (vice presidents) and the President’s Admin (administrative assistant) are all direct reports of the President but are not at the same level. The VPs are not at the Admin level, and the Admin is not at the VP level.
Attributes
Attributes provide descriptive information about the dimension members and are also useful when you are selecting dimension members for analysis:

• Select the products whose colour (attribute) is “Blue.”
• Select the customers who have two children.
• Select the promotions that are of type “Multipack.”
• Select all time periods whose description contains “January.”

Most types of attributes are entirely optional. Oracle OLAP permits a large number of attributes to be created if required. Some attributes are valid for all the members of the dimension, regardless of level. For example, all products at all levels have a description. Others attributes are valid for certain levels or certain hierarchies only. For example, only individual product items have a colour.




In the above picture certain products are displayed together with their parent levels in the hierarchy (subcategories and categories) on the Product dimension. In addition, two sample attributes (Colour and Product Manager) are displayed for these products.
Other examples of typical attributes might include:

• For Product dimensions: Colour, Flavour, Pack Size, Brand Manager Name, and so on
• For Customer dimensions: Gender, Marital Status, Date of Birth, and other types of demographic information

Note: Sometimes, attributes may also be modelled as levels in an alternate hierarchy. Consider the above example: If the business requirement was that measures should be aggregated by Product Manager (total for Bruce, John, Karl, Mary, and so on.) or by Colour (total for Blue, Green, Red, White, Yellow, and so on) and by the ability to drill down, aggregate, allocate, or calculate data based on these values, then many designers would consider creating additional hierarchies on the Product dimension for this purpose. However, many attributes have little business use as aggregates and are used simply in filtering.

In the next workshop we will start to review some of the Oracle OLAP related technology, from design and maintenance right through to end user reporting.

AWM Connection Methods

Connecting to a database using Analytic Workspace Manager (AWM) seems to cause some interesting postings on OTN. Why? Mainly because AWM provides two different connection methods and each method has its own requirements:

• JDBC - this uses the normal host:port:sid connection format and this is I suspect how most people connect since this is the way AWM is typically demonstrated


• TNS - this uses either the full TNS protocol string or references a TNS entry in the TNSNAMES.ORA file.

so let's look at these methods in a bit more detail:

Creating a JDBC Connection
This is the easiest method to use since AWM is configured out of the box to use JDBC connections. Connecting to a database using JDBC is very straightforward. After launching AWM, right-mouse click on the node "Database" and select "Add Database to tree", as shown here:


The connection dialog provides prompts to enter a descriptive label and the connection information. For a JDBC connection this is simply the hostname, the port for the database listener and the database SID. This is the information shown here:



Once you have supplied this information the database will be added to the tree and then you can connect to your chose database instance and provide a user name and password, as shown here:


The alternative method is to use a TNS entry and this method always seems to cause errors. Typical errors are:

• AWM simply aborts with no error message or warning
• OLAPI exception error stating : Unable to resolve type "SYS.SQLOLAPIEXCEPTION"
• An unexpected exception has been detected in native code outside the VM....... Library=D:\Oracle\product\10.2.0\db_1\BIN\ocijdbc10.dll

Creating a TNS connection

Firstly, we need to change the way AWM is typically launched.

Trapping errors with AWM
To get diagnostic information, to trap any errors not shown in the AWM GUI, I always recommend using the AWMC.EXE file. This launches a DOS command window that can be used to track error messages. With the 10.2.0.3A version of AWM there are some instances where the GUI will just simply crash or hang with no visible error messages. In this case if you try to use a TNS connection method, when AWM connects to the database instance and tries to retrieve the list of available AWs it simply aborts with no warning and the DOS command window disappears. To resolve this I created a batch file called AWM.BAT which launches AWM by calling awmc.exe. Running this from a command line window allows me to see all the relevant error messages.

Using a TNS connection
To connecting via the TNS method requires some additional steps in terms of configuration that might not be totally clear. The main problem appears to be the lack of any error messages if you make a mistake. If you get the basic connection string wrong, AWM will give you a reasonable error message that points you in the right direction (" TNS:could not resolve the connect identifier specified...."). However, as we all probably have lots of different Oracle products installed on our desktops/laptops, AWM is able to find, without any prompting, some of the files it needs to make a TNS connection and this is what causes the problem.

So which files does AWM need to make a TNS connection?

It needs a database client installation to be run to install the SQLNet layer. This will then provide the necessary DLLs etc to support a SQLNet connection. At this point, this is where AWM can go wrong and just simply crash without warning.

To make a TNS connection you can either reference one of the entries in the TNSNAMES.ORA file or you can paste in the full TNS connection string, such as:

(DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=klaker-uk.uk.oracle.com)(PORT=1521))(CONNECT_DATA=(SERVER=DEDICATED)(SERVICE_NAME=beans)))

into the connection dialog box instead of the JDBC connection string. If you want to reference an entry in the TNSNAMES, then assuming you have multiple Oracle homes, I would recommend setting the TNS_ADMIN environment variable so you know which TNSNAMES.ORA is being used. If you do not specify this environment variable the ORACLE_HOME environment variable will be used to source the TNSNAMES.ORA file. Therefore, you need to make sure you have the ORACLE_HOME environment variable set as a minimum before you start AWM.

Using the above batch file to run AWM, I added some additional environment variable statements as follows:

set TNS_ADMIN=D:\oracle\product\10.2.0.1\db_1\NETWORK\ADMIN
set PATH=D:\oracle\awm\awm\jre\bin;D:\oracle\product\10.2.0.1\db_1\bin;
set CLASSPATH=D:\oracle\awm\awm\jre\bin
set ORACLE_HOME=D:\oracle\product\10.2.0.1\db_1
call awmc.exe

In this case I have referenced my 10gR2 database installation. This, however, does cause an error when AWM tries to return a list of available AWs for my TNS connection. An error log is now created that contains the following information:

An unexpected exception has been detected in native code outside the VM.
Unexpected Signal : EXCEPTION_ACCESS_VIOLATION (0xc0000005) occurred at PC=0x61D35968
Function=xaolog+0x6338
Library=D:\oracle\product\10.2.0\db_1\bin\OraClient10.Dll

Current Java thread:
at oracle.jdbc.driver.T2CStatement.t2cParseExecuteDescribe(Native Method)
at oracle.jdbc.driver.T2CPreparedStatement.executeForDescribe(T2CPreparedStatement.java:518)
at oracle.jdbc.driver.OracleStatement.executeMaybeDescribe(OracleStatement.java:1030)
at oracle.jdbc.driver.OracleStatement.doExecuteWithTimeout(OracleStatement.java:1123)
at oracle.jdbc.driver.OraclePreparedStatement.executeInternal(OraclePreparedStatement.java:3284)
at oracle.jdbc.driver.OraclePreparedStatement.executeQuery(OraclePreparedStatement.java:3328)
- locked <0x1002eaf8> (a oracle.jdbc.driver.T2CPreparedStatement)
- locked <0x102312c8> (a oracle.jdbc.driver.T2CConnection)
at oracle.olap.awm.util.jdbc.SQLWrapper.execute(SQLWrapper.java:184)
at oracle.olap.awm.util.jdbc.SQLWrapper.execute(SQLWrapper.java:62)
at oracle.olap.awm.businessobject.aw.WorkspaceBO.getWorkspacesOwnedBySchemaInStandardForm(WorkspaceBO.java:200)
at oracle.olap.awm.navigator.node.WorkspaceFolderNode.getChildren(WorkspaceFolderNode.java:111)
at oracle.olap.awm.navigator.node.BaseNodeModel.refreshData(BaseNodeModel.java:74)
at oracle.olap.awm.navigator.node.BaseNodeModel.dTreeItemExpanding(BaseNodeModel.java:221)
at oracle.bali.ewt.dTree.DTreeDeferredParent.__fireExpansionChanging(Unknown Source)
at oracle.bali.ewt.dTree.DTreeDeferredParent.setExpanded(Unknown Source)
at oracle.olap.awm.navigator.node.BaseNode.expandHelper(BaseNode.java:2185)
- locked <0x100159f8> (a java.lang.Object)
at oracle.olap.awm.navigator.node.BaseNode.access$400(BaseNode.java:109)
at oracle.olap.awm.navigator.node.BaseNode$ExpansionThread.run(BaseNode.java:2135)

Dynamic libraries:
0x00400000 - 0x0041B000 D:\oracle\awm\awm\bin\awmc.exe
0x7C900000 - 0x7C9B0000 C:\WINDOWS\system32\ntdll.dll
0x7C800000 - 0x7C8F5000 C:\WINDOWS\system32\kernel32.dll
0x7E410000 - 0x7E4A0000 C:\WINDOWS\system32\USER32.dll
0x77F10000 - 0x77F57000 C:\WINDOWS\system32\GDI32.dll
0x76390000 - 0x763AD000 C:\WINDOWS\system32\IMM32.DLL
0x77DD0000 - 0x77E6B000 C:\WINDOWS\system32\ADVAPI32.dll
0x77E70000 - 0x77F01000 C:\WINDOWS\system32\RPCRT4.dll
0x629C0000 - 0x629C9000 C:\WINDOWS\system32\LPK.DLL
0x74D90000 - 0x74DFB000 C:\WINDOWS\system32\USP10.dll
0x77C10000 - 0x77C68000 C:\WINDOWS\system32\msvcrt.dll
0x08000000 - 0x08138000 D:\oracle\awm\awm\jre\bin\client\jvm.dll
0x76B40000 - 0x76B6D000 C:\WINDOWS\system32\WINMM.dll
0x10000000 - 0x10007000 D:\oracle\awm\awm\jre\bin\hpi.dll
0x00A20000 - 0x00A2E000 D:\oracle\awm\awm\jre\bin\verify.dll
0x00A30000 - 0x00A49000 D:\oracle\awm\awm\jre\bin\java.dll
0x00A50000 - 0x00A5D000 D:\oracle\awm\awm\jre\bin\zip.dll
0x03D70000 - 0x03E7F000 D:\oracle\awm\awm\jre\bin\awt.dll
0x73000000 - 0x73026000 C:\WINDOWS\system32\WINSPOOL.DRV
0x774E0000 - 0x7761D000 C:\WINDOWS\system32\ole32.dll
0x5AD70000 - 0x5ADA8000 C:\WINDOWS\system32\uxtheme.dll
0x03E80000 - 0x03ED0000 D:\oracle\awm\awm\jre\bin\fontmanager.dll
0x755C0000 - 0x755EE000 C:\WINDOWS\system32\msctfime.ime
0x038C0000 - 0x038DE000 D:\oracle\awm\awm\jre\bin\jpeg.dll
0x62F00000 - 0x62F13000 D:\oracle\product\10.2.0\db_1\BIN\ocijdbc10.dll
0x045D0000 - 0x04629000 D:\oracle\product\10.2.0\db_1\BIN\OCI.dll
0x7C340000 - 0x7C396000 C:\WINDOWS\system32\MSVCR71.dll
0x76BF0000 - 0x76BFB000 C:\WINDOWS\system32\PSAPI.DLL
0x61C20000 - 0x61E76000 D:\oracle\product\10.2.0\db_1\bin\OraClient10.Dll
0x60870000 - 0x60957000 D:\oracle\product\10.2.0\db_1\bin\oracore10.dll
0x60A80000 - 0x60B4B000 D:\oracle\product\10.2.0\db_1\bin\oranls10.dll
0x63690000 - 0x636A8000 D:\oracle\product\10.2.0\db_1\bin\oraunls10.dll
0x60EB0000 - 0x60EB7000 D:\oracle\product\10.2.0\db_1\bin\orauts.dll
0x71AB0000 - 0x71AC7000 C:\WINDOWS\system32\WS2_32.dll
0x71AA0000 - 0x71AA8000 C:\WINDOWS\system32\WS2HELP.dll
0x636B0000 - 0x636B6000 D:\oracle\product\10.2.0\db_1\bin\oravsn10.dll
0x60FA0000 - 0x61093000 D:\oracle\product\10.2.0\db_1\bin\oracommon10.dll
0x60300000 - 0x6086C000 D:\oracle\product\10.2.0\db_1\bin\orageneric10.dll
0x63430000 - 0x63457000 D:\oracle\product\10.2.0\db_1\bin\orasnls10.dll
0x63750000 - 0x638C6000 D:\oracle\product\10.2.0\db_1\bin\oraxml10.dll
0x04640000 - 0x04651000 C:\WINDOWS\system32\MSVCIRT.dll
0x60960000 - 0x60A73000 D:\oracle\product\10.2.0\db_1\bin\oran10.dll
0x62740000 - 0x6277E000 D:\oracle\product\10.2.0\db_1\bin\oranl10.dll
0x62790000 - 0x627A7000 D:\oracle\product\10.2.0\db_1\bin\oranldap10.dll
0x627F0000 - 0x628FC000 D:\oracle\product\10.2.0\db_1\bin\orannzsbb10.dll
0x62530000 - 0x62583000 D:\oracle\product\10.2.0\db_1\bin\oraldapclnt10.dll
0x62670000 - 0x6268B000 D:\oracle\product\10.2.0\db_1\bin\orancrypt10.dll
0x71AD0000 - 0x71AD9000 C:\WINDOWS\system32\WSOCK32.dll
0x77120000 - 0x771AB000 C:\WINDOWS\system32\OLEAUT32.dll
0x62920000 - 0x6296D000 D:\oracle\product\10.2.0\db_1\bin\oranro10.dll
0x626B0000 - 0x626B7000 D:\oracle\product\10.2.0\db_1\bin\oranhost10.dll
0x62660000 - 0x62666000 D:\oracle\product\10.2.0\db_1\bin\orancds10.dll
0x04660000 - 0x04668000 D:\oracle\product\10.2.0\db_1\bin\orantns10.dll
0x04670000 - 0x049D6000 D:\oracle\product\10.2.0\db_1\bin\orapls10.dll
0x049E0000 - 0x049E9000 D:\oracle\product\10.2.0\db_1\bin\oraslax10.dll
0x63080000 - 0x63284000 D:\oracle\product\10.2.0\db_1\bin\oraplp10.dll
0x61ED0000 - 0x61F6A000 D:\oracle\product\10.2.0\db_1\bin\orahasgen10.dll
0x62AB0000 - 0x62B1F000 D:\oracle\product\10.2.0\db_1\bin\oraocr10.dll
0x62B20000 - 0x62B66000 D:\oracle\product\10.2.0\db_1\bin\oraocrb10.dll
0x5B860000 - 0x5B8B4000 C:\WINDOWS\system32\NETAPI32.dll
0x62980000 - 0x62990000 D:\oracle\product\10.2.0\db_1\bin\orantcp10.dll
0x63520000 - 0x635BA000 D:\oracle\product\10.2.0\db_1\bin\orasql10.dll
0x77FE0000 - 0x77FF1000 C:\WINDOWS\system32\Secur32.dll
0x71A50000 - 0x71A8F000 C:\WINDOWS\System32\mswsock.dll
0x76F20000 - 0x76F47000 C:\WINDOWS\system32\DNSAPI.dll
0x76FB0000 - 0x76FB8000 C:\WINDOWS\System32\winrnr.dll
0x76F60000 - 0x76F8C000 C:\WINDOWS\system32\WLDAP32.dll
0x751D0000 - 0x751EE000 C:\WINDOWS\system32\wshbth.dll
0x77920000 - 0x77A13000 C:\WINDOWS\system32\SETUPAPI.dll
0x04CF0000 - 0x04D15000 C:\Program Files\Bonjour\mdnsNSP.dll
0x76D60000 - 0x76D79000 C:\WINDOWS\system32\Iphlpapi.dll
0x76FC0000 - 0x76FC6000 C:\WINDOWS\system32\rasadhlp.dll
0x662B0000 - 0x66308000 C:\WINDOWS\system32\hnetcfg.dll
0x71A90000 - 0x71A98000 C:\WINDOWS\System32\wshtcpip.dll
0x71F80000 - 0x71F84000 C:\WINDOWS\system32\security.dll
0x77C70000 - 0x77C93000 C:\WINDOWS\system32\msv1_0.dll
0x76C90000 - 0x76CB8000 C:\WINDOWS\system32\imagehlp.dll
0x59A60000 - 0x59B01000 C:\WINDOWS\system32\DBGHELP.dll
0x77C00000 - 0x77C08000 C:\WINDOWS\system32\VERSION.dll

Heap at VM Abort:
Heap
def new generation total 2176K, used 226K [0x10010000, 0x10260000, 0x12770000)
eden space 1984K, 6% used [0x10010000, 0x100313e0, 0x10200000)
from space 192K, 48% used [0x10230000, 0x102475c0, 0x10260000)
to space 192K, 0% used [0x10200000, 0x10200000, 0x10230000)
tenured generation total 27488K, used 21294K [0x12770000, 0x14248000, 0x30010000)
the space 27488K, 77% used [0x12770000, 0x13c3b850, 0x13c3ba00, 0x14248000)
compacting perm gen total 15616K, used 15595K [0x30010000, 0x30f50000, 0x34010000)
the space 15616K, 99% used [0x30010000, 0x30f4ad60, 0x30f4ae00, 0x30f50000)

Local Time = Mon Dec 31 09:52:15 2007
Elapsed Time = 17
#
# The exception above was detected in native code outside the VM
#
# Java VM: Java HotSpot(TM) Client VM (1.4.2_03-b02 mixed mode)
#

Notice the error is with the OraClient10.dll file. Doing a search across all my Oracle software installations I found multiple copies of this file, with different file sizes. The file in the database home/bin directory was 2348Kb. The file in my OWB10gR2 directory was 1877Kb. Switching the batch file to point to my OWB home directory to use that OraClient10.dll file resolved the connection problem:

set TNS_ADMIN=D:\oracle\OWB10gHome\NETWORK\ADMIN
set PATH=D:\oracle\awm\awm\jre\bin;D:\oracle\OWB10gHome\bin;
set CLASSPATH=D:\oracle\awm\awm\jre\bin
set ORACLE_HOME=D:\oracle\OWB10gHome
call awmc.exe

Therefore, it would appear that the latest database version (10.2.0.3) of the OraClient10.dll file is somehow incompatible with the latest version of AWM10.2.0.3A. Not sure why, but I have logged a bug to try and resolve this.

To summarize, if you want to define a database connection in AWM based on a TNS connection name or TNS string do the following:

1) Make sure you have a database Client installation (or equivalent, such as OWB) that provides 2) SQLNet
Create a batch file to run AWM
3) Add the following environment variables to your batch file:

• TNS_ADMIN to point to your TNSNAMES.ORA file
• or enter the TNS connect string in full ((DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=............................)))
• ORACLE_HOME to point to your database client installation or equivalent.

in addition, to avoid other possible conflicts I also set the following:

• CLASSPATH - limited to just AWM
• PATH - limited to just the ORACLE_HOME and AWM

With all this in place, everything should work as normal. and if you do get an error it should be recorded in the DOS command window, which will not be closed if you call it directly from a command prompt.
